ANSI-1KV/315A~1200KV (Bushing)

Transformer bushing is a vital component of electrical equipment that provides insulation, support, and a critical electrical connection. It is available in various types such as porcelain, oil-impregnated paper, and polymeric, each possessing unique features and benefits. Proper installation and maintenance are essential for optimal performance and reliability.

Category:

American bushing

Hotline:

86-574-87808459

Send Inquiry

Related Product

Product Description

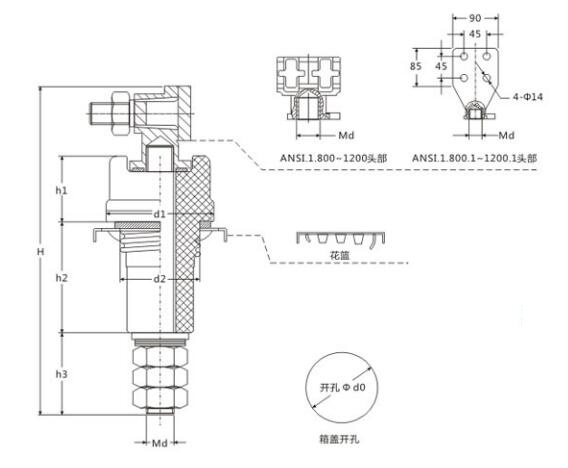

External Dimension

Conduit technical parameter &exterior dimension

( Code)	Type-voltage Current) KV/ A	(Dimensions)mm
( Code)	Type-voltage Current) KV/ A	H	h1	h2	h3	Md	d0	d1	d2
WT-001	ANSI-1/315	150	30	52	39	M12	37	50	34
WT-002	ANSI-1/400	196	40	55	50	M16	70	95	65
WT-003	ANSI-1/630	196	40	55	50	M20	70	95	65
WT-004	ANSI-1/800	220	40	55	60	M24	70	95	65
WT-005	ANSI-1/800	295	40	55	60	M24	70	95	65
WT-006	ANSI-1/1000	305	58	75	70	M30	75	95	70
WT-007	ANSI-1/1000	370	58	75	70	M30	75	95	70
WT-008	ANSI-1/1200	305	58	75	70	M33	75	95	70
WT-009	ANSI-1/1200	370	58	75	70	M33	75	95	70
