ANSI-10KV~24KV/315A(Bushing)
Transformer bushing is a vital component of electrical equipment that provides insulation, support, and a critical electrical connection. It is available in various types such as porcelain, oil-impregnated paper, and polymeric, each possessing unique features and benefits. Proper installation and maintenance are essential for optimal performance and reliability.
Category:
American bushing
Hotline:
86-574-87808459
Product Description

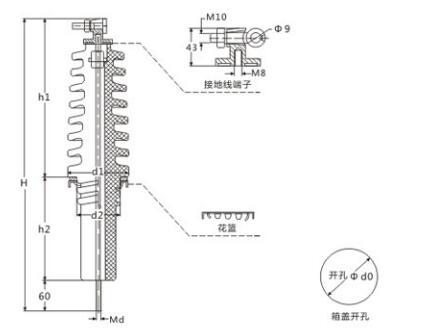

External Dimension
Conduit technical parameter &exterior dimension
| (Code) | (Type-voltage Current) KV/A |
(Dimensions)mm | (Shape ) |
(Creepage Dislance) mm |
|||||||
| H | h1 | h2 | h3 | Md | d0 | d1 | d2 | ||||
| WT-001 | ANSI-10/315 | 355 | 205 | 90 | 60 | M8×1.5 | 70 | 100 | 68 | 5 Single umbrella | 280 |
| WT-002 | ANSI-15/315 | 505 | 260 | 185 | 60 | M8×1.5 | 70 | 100 | 68 | 8 Single umbrella | 430 |
| WT-003 | ANSI-20/315 | 565 | 320 | 185 | 60 | M8×1.5 | 70 | 100 | 68 | 9 Single umbrella | 490 |
| WT-004 | ANSI-24/315 | 690 | 390 | 240 | 60 | M8×1.5 | 70 | 100 | 68 | 12 Single umbrella | 615 |
