300A~4000A Parallel Wire connecting terminal
Transformer bushing is a vital component of electrical equipment that provides insulation, support, and a critical electrical connection. It is available in various types such as porcelain, oil-impregnated paper, and polymeric, each possessing unique features and benefits. Proper installation and maintenance are essential for optimal performance and reliability.
Category:
Terminal/clamp series
Hotline:
86-574-87808459
Product Description

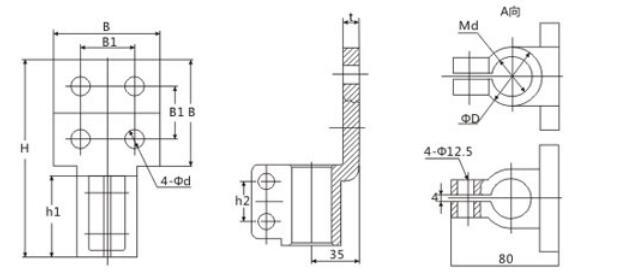

External Dimension
Conduit technical parameter &exterior dimension
| ( Code ) | Rated current |
(Dimensions ) mm | ( Weight ) kg |
||||||||
| H | h1 | h2 | t | φD | Md | d | B | B1 | |||
| WT-001 | 300 | 90 | 35 | 16 | 8 | 22 | 12×1.75 | 11 | so | 25 | 0.6 |
| WT-002 | 400 | 110 | 46 | 20 | 8 | 32 | 16×2 | 12.5 | 60 | 30 | 0.6 |
| WT-003 | 600 | 110 | 46 | 20 | 8 | 32 | 20×2.5 | 12.5 | 60 | 30 | 0.45 |
| WT-004 | 800 | 150 | 60 | 27 | 12 | 38 | 24×1.5 | 14 | 8o | 40 | 1.1 |
| WT-005 | 1000 | 150 | 60 | 27 | 12 | 42 | $27 | 14 | 8o | 40 | 1.2 |
| WT-006 | 1200 | 150 | 60 | 27 | 12 | 47 | $30 | 14 | 8o | 40 | 1.3 |
| WT-007 | 1600 | 170 | 70 | 35 | 12 | 53 | $33 | 14 | 95 | 5o | 2.7 |
| WT-008 | 2000 | 190 | 78 | 35 | 16 | 56 | $37 | 14 | 100 | so | 2.5 |
| WT-009 | 3150 | 190 | 78 | 35 | 16 | 64 | $42 | 14 | 100 | so | 2.9 |
| WT-010 | 4000 | 80 | 35 | 18 | 71 | $42 | 18 | 100 | so | 4.5 | |
