BJLH/BJLG-10KV~24KV/50A~315 (Bushing)
Transformer bushing is a vital component of electrical equipment that provides insulation, support, and a critical electrical connection. It is available in various types such as porcelain, oil-impregnated paper, and polymeric, each possessing unique features and benefits. Proper installation and maintenance are essential for optimal performance and reliability.
Category:
BJLH/BJLG-10KV~24KV50A~315A
Hotline:
86-574-87808459
Product Description

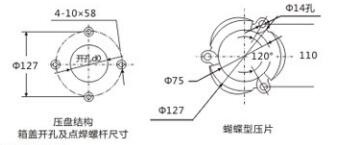

External Dimension
Conduit technical parameter &exterior dimension
| (Code) | Type-voltage current A |
(Dimensions)mm | (Shape) | (creepage Distance) mm |
(Weight) kg |
||||
| H | h1 | h2 | Md | d1 | |||||
| WT-001 | BJLH-10/50 | 350 | 190 | 60 | M12×1.75 | 6.5 | 5 Single umbrella | 410 | 2.1 |
| WT-002 | BJLH-10/315 | 360 | 190 | 60 | M12×1.75 | 18 | 5 Single umbrella | 410 | 2.2 |
| WT-003 | BJLG-24/50 | 490 | 320 | 100 | M12×1.75 | 6.5 | 7 Single umbrella | 780 | 7.2 |
| WT-004 | BJLG-24/315 | 500 | 320 | 100 | M12×1.75 | 18 | 7 Single umbrella | 780 | 7.3 |
